Vapor Barrier and Tape

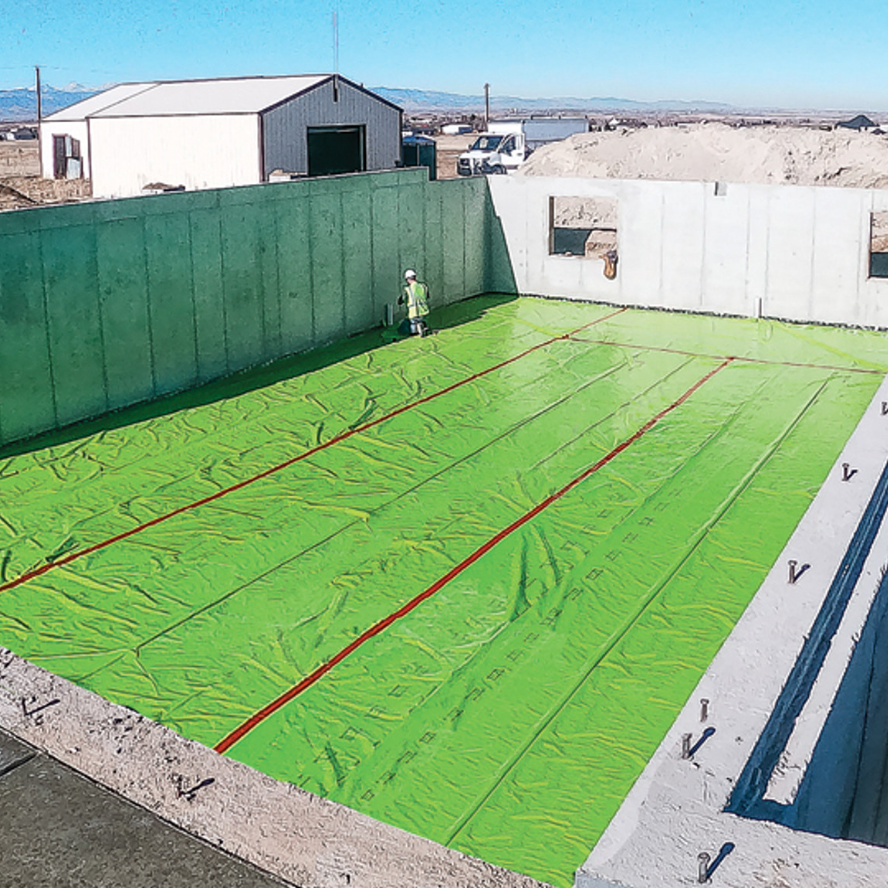

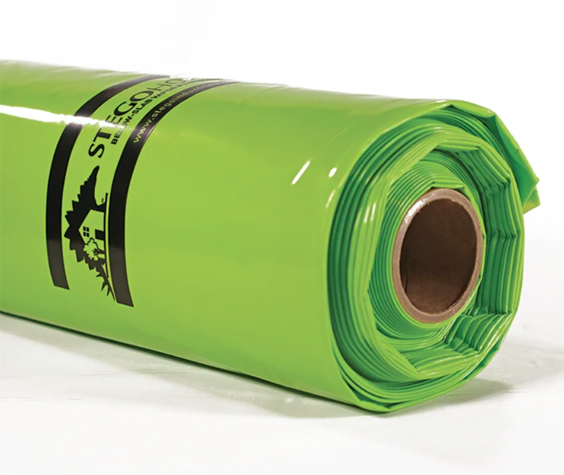

StegoHome Vapor barrier (12′ x 50′, 15-mil)
High-Performance Vapor Protection
StegoHome 15-Mil Vapor Barrier is made from a proprietary blend of prime virgin polyolefin resins and additives, a combination lending to great value and effectiveness in protecting the concrete slab from moisture intrusion.
Design professionals and commercial contractors have come to rely on Stego products for our nation’s most critical project types, such as hospitals and schools. That same track record for success is now available for your most critical project too – your home. Stego extends its first-of-its-kind Life of the Building Warranty to ensure you get the same quality and piece of mind at home that you deserve.
Infiltration of moisture from the ground through concrete slabs is a major home defect liability. StegoHome 15-Mil Vapor Barrier is designed not only for effectiveness, but also for longevity. This vapor barrier is manufactured with only the highest grade of prime, virgin, polyolefin resins which allows this product to greatly resist degradation. This product is also engineered for superior strength and durability, never flakes and is resistant to tears, snags, punctures, and cracks.
StegoHome 15-Mil Vapor Barrier has an extremely low permeance rating, which helps mitigate the risk of water vapor accumulation and the transmission of various soil gases. This helps to maintain the integrity of the building envelope and promotes better indoor air quality by avoiding serious moisture-related issues.
Engineered Performance – Life of the Building Protection
Stego offers the first-of-its-kind warranty for its line of vapor barriers and retarders. The Stego Life of the Building Warranty reinforces its 20+ year track record without a single claim of product failures, making Stego the construction industry leader in below-slab barriers.
Physical Properties:
- ✓ Water Vapor Permeance: Tested to be under 0.01 perms (ASTM F1249)
- ✓ Puncture Resistance: Exceeds 2,200 grams (ASTM D1709)
- ✓ Tensile Strength: Exceeds 45 lb/in (ASTM D882)
- ✓ Thickness: 15-Mil
- ✓ Dimensions: 12′ x 50′ (600 ft²)
- ✓ Roll Weight: 47 lbs
Benefits of StegoHome 15-Mil Vapor Barrier:
- ✓ Resists vapor diffusion and moisture intrusion
- ✓ Exceptional durability
- ✓ Resists deterioration
- ✓ Simple, dependable installation
- ✓ Reduces migration of soil gases, such as methane or radon
- ✓ Available nationwide
- ✓ Life of the Building Warranty

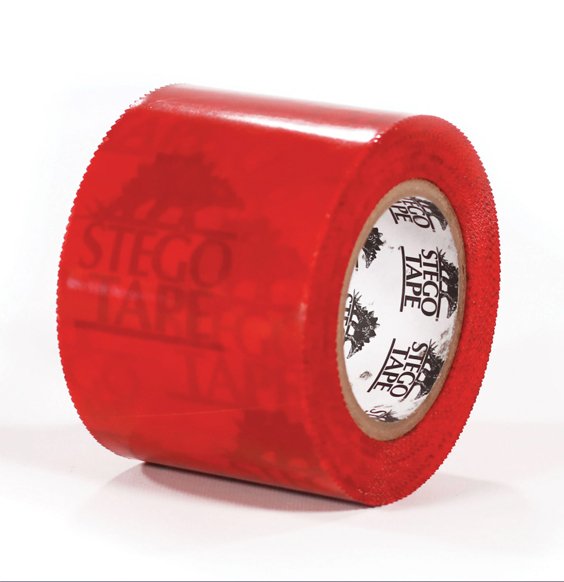

STEGO® TAPE
Low-Permeance, Great Long-Term Adhesion

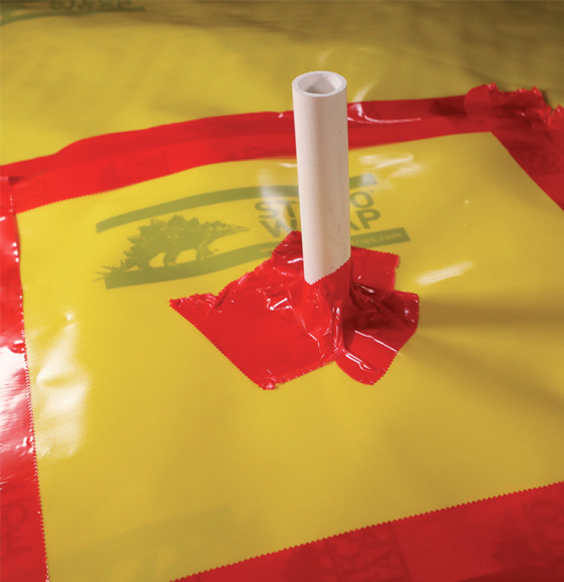

Stego Tape is a low-permeance tape designed for protective sealing, hanging, seaming, splicing, and patching applications where a highly conformable material is required. This pressure-sensitive tape is engineered to bond specifically to Stego Wrap, making it ideal for sealing Stego Wrap seams and penetrations. Stego Tape is made of a polyethylene film and an acrylic and can seal, bond, and attach to plastic, wood, steel, and other substrates.
Its many features include:
- ✓ Dimensions: 3.75″ x 180′
- ✓ Comprised of a polyethylene film and acrylic, pressure-sensitive adhesive
- ✓ Superior moisture resistance
- ✓ Excellent sealing properties
- ✓ Clean release, no residue
- ✓ Made in the USA with US and global materials
Stego Tape has a very low permeance rating. This product is made specifically for use with Stego Wrap Vapor Barriers and Retarders, and it plays a vital role in creating a below-slab moisture protection system.
APPLICABLE STANDARDS American Society for Testing & Materials (ASTM):
- ✓ ASTM E1643: Standard Practice for Installation of Water Vapor Retarders used in Contact with Earth or Granular Fill under Concrete Slabs
- ✓ PSTC 101: International Standard for Peel Adhesion of Pressure Sensitive Tape
- ✓ Total Thickness: 6 mil
- ✓ Permeance: 0.03 perms
- ✓ Tensile Strength: >12 lbf/in
- ✓ Adhesion (20 min dwell, ss PSTC 101): 84 oz/in width
- ✓ Ultraviolet Resistance: Excellent
- ✓ Strong initial tack and long-term adhesion
- ✓ Resists both fluid and vapor ingress
- ✓ Use in applications where a highly conformable material is required
- ✓ Available nationwide

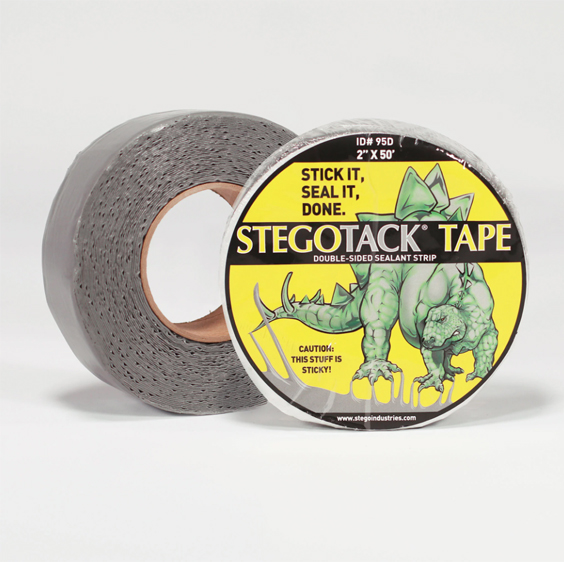

STEGOTACK® TAPE
Flexible, Double-Sided Tape for Perimeter Sealing
StegoTack Tape is a double-sided adhesive strip used to bond and seal Stego Wrap, StegoHome, or StegoCrawl to concrete, masonry, wood, metal, and other surfaces. StegoTack is a flexible and moldable material to allow for a variety of applications and installations.
Its many features include:
- ✓ Dimensions: 2” x 50’
- ✓ Color: Grey
- ✓ Made from a blend of synthetic rubber and resins
- ✓ Highly flexible and moldable
- ✓ Low VOC Emissions – Certified Green Air GOLD
- ✓ Made in the USA

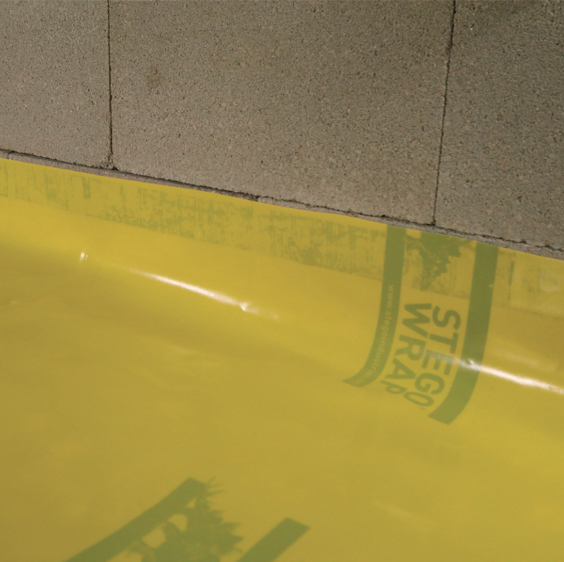

StegoTack Tape is a moldable material for a variety of applications. This flexible, double-sided adhesive strip bonds to concrete, masonry, wood, plastic, and metal, and is commonly used to seal Stego Wrap to footings, walls, and columns.
APPLICABLE STANDARDS – American Society for Testing & Materials (ASTM):
- ✓ ASTM D1000: Standard Test Method for Pressure-Sensitive Adhesive-Coated Tapes Used for Electrical and Electronic Applications
- ✓ Total Thickness: 6 mil
- ✓ Permeance: 0.03 perms
- ✓ Adhesion to Steel, ASTM D1000: 12.5 lb/in width
- ✓ Installation Temperature: 40 °F – 110 °F
- ✓ In-Service Temperature Range: −20 °F – 140 °F
- ✓ Aggressive adhesion
- ✓ RNo VOCs, 100% solids
- ✓ Low permeance to water vapor
- ✓ Available nationwide

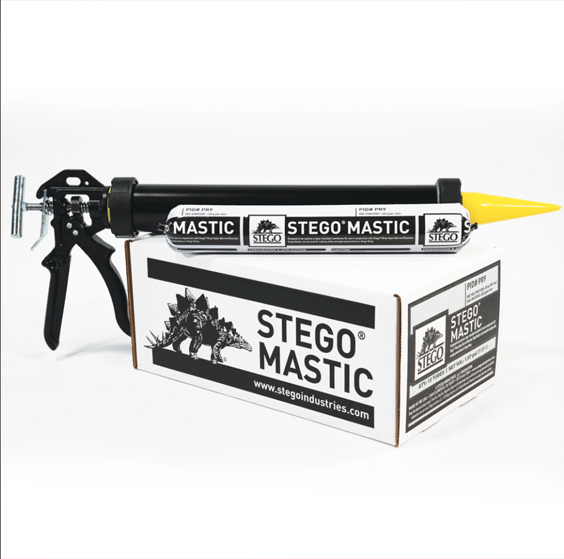

Stego Mastic 20oz sausage tube
Strong, Flexible, and Vapor Resistant
Stego Mastic is a liquid-applied vapor retardant membrane, designed to be used in conjunction with Stego Wrap vapor barriers and retarders to create a quality installation that greatly resists the ingress of moisture and other gases. It can be used for sealing utility, pipe penetrations, and terminating edges when used in conjunction with Stego Tape or StegoTack Tape. Stego Mastic is available in 20-ounce sausage tubes for repairs and small installations.
Its many features include:
- ✓ Time-saving aid in achieving an ASTM E1643 installation
- ✓ Sausage Tube feature allows for Stego Mastic to be used with a mastic applicator (sausage) gun, for a more precise application
- ✓ Ideal for sealing multiple pipe penetrations in close proximity and small pipe penetrations
- ✓ Water-based, trowel-grade asphaltic emulsion
- ✓ Made in the USA
Stego Mastic is a water-based, medium-viscosity, polymer-modified anionic asphalt emulsion. It can be used to seal permanent penetrations of Stego Wrap quickly and easily, especially small pipes, between pipe clusters, and terminating edges.
APPLICABLE STANDARDS – American Society for Testing & Materials (ASTM):
- ✓ ASTM D412: Standard Test Method for Vulcanized Rubber and Thermoplastic Elastomers Tension
- ✓ ASTM E154: Standard Test Methods for Water Vapor Retarders used in Contact with Earth under Concrete Slabs, on Walls, or as Ground Cover
- ✓ ASTM E96: Standard Test Methods for Water Vapor Transmission of Materials
- ✓ ASTM D751: Standard Test Methods for Coated Fabrics
- ✓ ASTM C836: Standard Specification for High Solids Content, Cold Liquid-Applied Elastomeric Waterproofing Membrane for use with Separate Wearing Course
- ✓ ASTM E1643: Standard Practice for Installation of Water Vapor Retarders used in Contact with Earth or Granular Fill under Concrete Slabs
Physical Properties:
- ✓ Tensile/Elongation, ASTM D412: 32 psi, 3860%
- ✓ Resistance to Decay, ASTM E154: 10% perm loss
- ✓ Permeance, ASTM E96: 0.17 perms
- ✓ Hydrostatic Water Pressure, ASTM D751: 28 psi
- ✓ Adhesion to Concrete & Masonry, ASTM C836: 7 lbf/in²
- ✓ Hardness, ASTM C836: No cracking
- ✓ Low Temp Flexibility, ASTM C836: No cracking

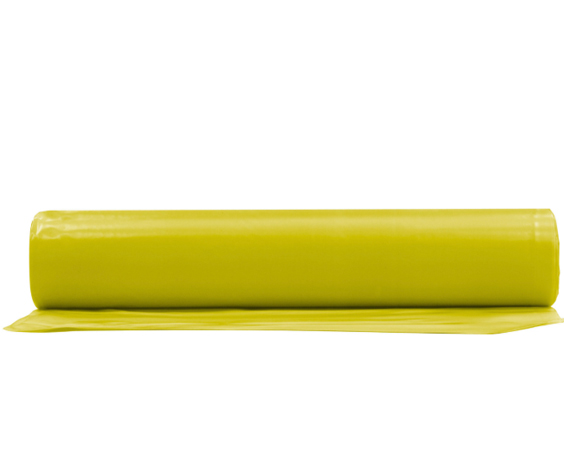

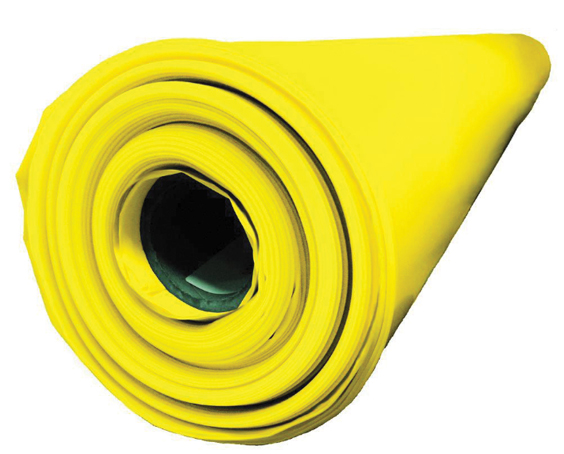

Husky® Yellow Guard® Vapor Barriers
HUSKY Yellow Guard premium vapor barriers are waterproofing membranes manufactured using top-quality polyethylene (polyolefin) resins. HUSKY Yellow Guard vapor barriers are manufactured to be used in contact with soil and granular fill under concrete slabs, beams, and footings, and provide exceptionally low water vapor permeance. HUSKY Yellow Guard vapor barriers are manufactured by Poly-America. Poly America utilizes state-of-the-art processing equipment.
- ✓ Exceeds industry standard ASTM E 1745 Classes, A, B and C specifications.
- ✓ Made with top-quality polyethylene (polyolefin) resins.
- ✓ Restricts vapor and migration of soil gases under concrete slabs.
- ✓ Excellent resistance to low-temperature brittleness.
| Specification | Value |
|---|---|
| Color | Yellow |
| Color Family | Yellow |
| Material | Polyethylene |
| Nominal Product Depth | 0 |
| Thickness | 15 mil |

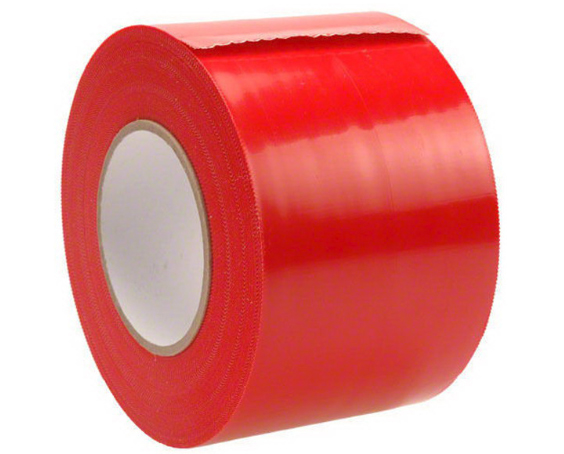

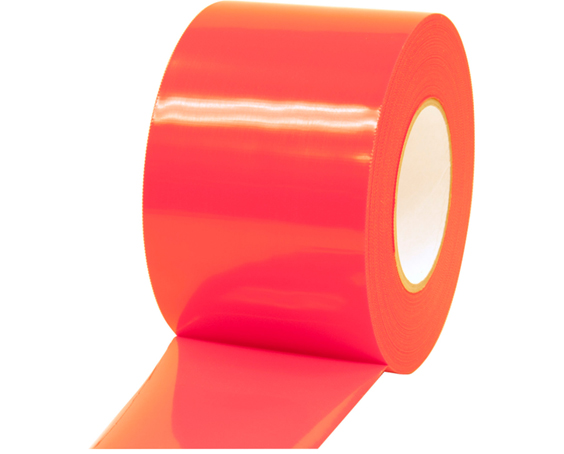

Husky® Yellow Guard® Vapor Barriers Sealing Tape
HUSKY Red Yellow Guard Vapor Barrier Sealing Tape is made from a cast polyethylene film coated with high tack natural rubber adhesive. HUSKY Yellow Guard Vapor Barrier Sealing Tape is compatible with HUSKY Yellow Guard Vapor Barrier Sheeting. HUSKY Yellow Guard vapor barrier sealing tape resists moisture, cold temperature and UV light.
- ✓ Made with cast polyethylene film coated with a high-tack adhesive.
- ✓ 3.75″ X 180′
- ✓ Resists moisture, cold temperature and UV light
| Specification | Value |
|---|---|
| Color Family | Red |
| Thickness | 9 mil |
| Nominal Product Depth | 0 |
