Zont Bracing

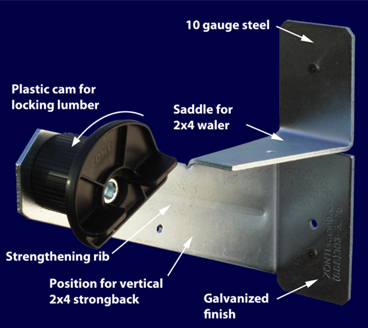

Zont Twist™ Bracket
The Zont Twist™ locks the 2×4 walers and strongbacks against the ICF wall to flatten the wall horizontally and vertically.
The plastic cam is twisted counterclockwise to quickly lock the lumber, reducing the installation time by one half. The cam is designed so that any wall settlement will tighten the lumber against the wall.
Specifications:
- ✓ Galvanized to prevent corrosion
- ✓ Strong 10 gauge steel
- ✓ High strength polypropylene cam
- ✓ Unit weight: 1.86 pounds
- ✓ Packaging: 20 per box
- ✓ Box weight: 39 pounds
- ✓ Box size: 20.5″ x 11.5″ x 10.3″ H

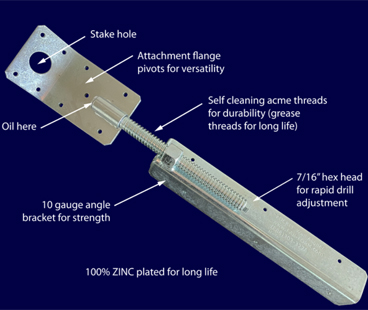

Zuckle™ Scaffold Alignment Braces
Finally. A scaffold alignment brace specifically designed for ICF walls. Only 3.6 pounds, just half the weight of conventional turnbuckles. And fast adjustment with your electric drill.
Specifications:
- ✓ Weight: only 3.6 pounds
- ✓ Zinc plated to prevent corrosion
- ✓ Acme thread for durability and self-cleaning of concrete
- ✓ 10 gauge sheet metal frame and end
- ✓ Packaging: 10 per box
- ✓ Box weight: 39 pounds
- ✓ Box size: 20″ x 13″ x 6″
Zat
Zee
- ✓ Lightweight, easy to install
Each ZEE weighs just 2.9 pounds and is easy to install using 1-1/2″ x #8 deck screws. They work with all ICFs that have the ties molded into the foam.
- ✓ Eliminate 3 marriage lines per T-junction
Forming T-junctions with ZEEs eliminates three marriage lines at each junction. As each marriage line takes approximately 40 minutes to cut, reinforce with 1x4s and strip, that’s a lot of wasted labour. In the photo below, no marriage lines were required using ZEEs.
As each marriage line requires cutting the ICF block on each side of the line, this leads to excessive ICF waste.
- ✓ Reinforce Offset Corners
Offset corners are always a challenge to brace. ZEEs allow you to do this quickly without having to rip down plywood and waste dimensional lumber. As ZEEs can be reused many times, their effective cost is minimal.
Zeveler

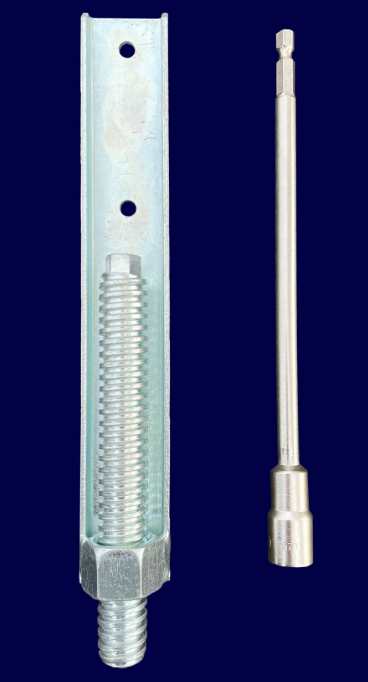

Zeveler Bracket
The Zeveler bracket is ideal for leveling up an ICF wall on top of a footing that is out of level.
Pairs of Zevelers are installed 8′ on center around the perimeter of the bottom two courses of ICF blocks and adjusted to level the wall perfectly. The space between the bottom of the ICF wall and the footing is then filled in with ICF non-expansive foam.
The 7/16″ hex head driver allows easy adjustment with an electric drill.
The bottom of the Zeveler has a rounded head that prevents the steel from “walking” on the footing.
Specifications:
- ✓ Zinc plated to prevent corrosion
- ✓ Strong 12 gauge steel frame
- ✓ Acme thread for durability and self-cleaning of concrete
- ✓ High quality, can be reused many times
- ✓ Unit weight: 1.9 lbs/pair
- ✓ Packaging: 18 pairs per Lo Zote
- ✓ Box weight: 41 pounds
- ✓ Box size: 21.5″ L x 11″ W x 6.5″ H
Zote
LO ZOTES & ZOTES
Finally galvanized steel totes that are nearly indestructible. Replaces plastic totes that always crack and break.
Available in two sizes: ZOTE and LO ZOTE
Specifications:
- ✓ Both sizes are inter-stackable
- ✓ Four drain holes to prevent water accumulation
- ✓ Solid steel handles for easy lifting
- ✓ Zinc plated to prevent corrosion
LO ZOTES
Holds 10 Zuckles or 18 pairs of Zevelors
Size: 21.5″ x 13″ x 5-1/2″ x 21 gauge
Weight: 7.7 pounds
Exactly half the height of Zote for easy stacking on pallets with Zotes
ZOTES
Holds 20 Zonts
Size: 21.5″ x 13″ x 11″
Weight: 10.9 pounds
